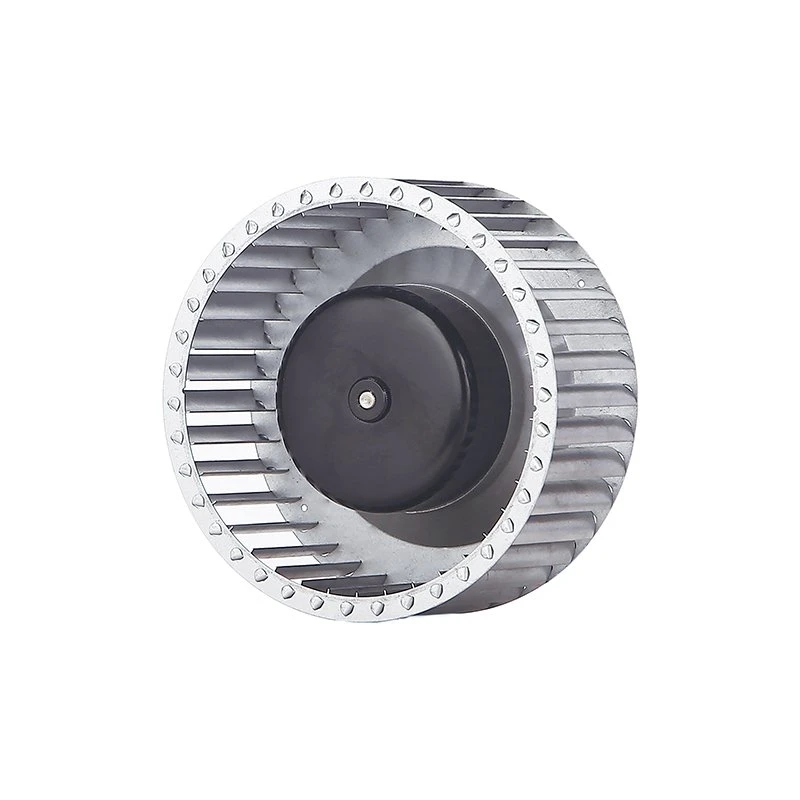

PBM Motor and Fan (Suzhou) Co., Ltd. is one of the most reliable manufacturers and suppliers of 200mm ec-dc forward curved centrifugal fan pf3n200b48x in China. With abundant experience, we are committed to providing high quality customized products with competitive price. If you're going to buy bulk premium 200mm ec-dc forward curved centrifugal fan pf3n200b48x, welcome to get pricelist from our factory.
|
1-1 |
48 VDC |
|
|
1-2 |
36~57 VDC |
|
|
1-3 |
1100 RPM |
|
|
1-4 |
1.1 A |
|
|
1-5 |
52.8 W |
|
|
1-6 |
235.4 CFM / 400 M³/H |
|
|
1-7 |
0.48 inH₂O / 120 Pa |
|
|
1-8 |
45 dB(A) |
|
|
1-9 |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
|
1-10 |
||
|
1-11 |
||
|
1-13 |
Control input 0~10VDC / PWM |
|
|
1-14 |
IP44 |
|
|
1-15 |
|
2-1 |
Ø200 mm X 130 mm (see dimension drawing) |
|
|
2-2 |
||
|
2-3 |
38 |
|
|
2-4 |
||
|
2-5 |
DC (AWG20 #) |
|
3-1 |
-25℃ to 60℃ |
|
|
3-2 |
-40℃ to 75℃ |
|
|
3-3 |
5% to 90% RH |
|
|
3-4 |
5% to 95% RH |
Input Voltage----Operating voltage (48VDC)
Temperature-----Room temperature
Humidity---------65%RH
1.Connection line:DC(4×AWG20#)
2.DC: Red=Voltage Intput 48VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
